Mounts, Bases & Line Releases

Jump to:

Current Mounting Bases

Universal Mounting Base

universal base.png

  • Universal Mounting Base Composite (Standard) item number 1904040
    316-grade Stainless Steel item number 1904045
  • Lifetime warranty on Standard Base.
    1-year warranty on 316- grade Stainless Steel Base.
  • Standard Equipment On:
    • Easi-Troll
    • Uni-Troll 5 ST and Uni-Troll 10 STX
    • Mag 5 ST, Mag 10 STX and Mag 10 STX-TS
    • Digi-Troll 5, Digi-Troll 5 TS, Digi-Troll 10, Digi-Troll 10 TS
    • Optimum
  • Mounting Hardware not included.
  • Dimensions
    • Width - 5 1/4”
    • Length - 5 1/4”
    • Height - 1 1/2”
    • Mounting Holes - 2.5” x 2.5”
  • Compatible Accessories
    • Low Profile Swivel Base
    • Aluminum Fixed Base Pedestal
    • Aluminum Swivel Base Pedestal
    • Gimbal Mount
    • Clamp Mount (Only on Lake-Troll or Easi-Troll
    • Rail/Side Mount
    • Deck Plate

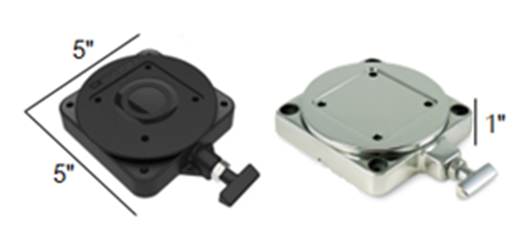

Low Profile Swivel Base

Low Profile Swivel Base.png

  • Lifetime warranty on the Standard Composite Low Profile Swivel Base
    1-year warranty on 316-grade Stainless Steel Low Profile Swivel Base
    NOTE: The Locking Pin has no warranty, it is considered a wear and tear part.
  • Standard Equipment On
    • Uni-Troll 10 STX
    • Mag 10 STX and Mag 10 STX-TS
    • Digi-Troll 5, Digi-Troll 5 TS, Digi-Troll 10, Digi-Troll 10 TS
    • Optimum
  • Dimensions
    • Width - 5”
    • Length - 5”
    • Height - 1”
    • Outer Mounting Holes - 4”x 4”
    • Inner Mounting Holes - 2.5” x 2.5”
  • Mounting Hardware Kit, part number 2994899
  • Compatible Accessories
    • Low Profile Swivel Base
    • Aluminum Fixed Base Pedestal
    • Gimbal Mount
    • Clamp Mount (Only on Lake-Troll or Easi-Troll
    • Rail/Side Mount
    • Deck Plate
  • Backward Compatibility
    • Any mounting base with mounting holes that are 2.5” x 2.5”

Tab Lock Mounting Base

Tab Lock Mounting Base.png

  • Tab Lock Base (Lexan Material) (Also Known as Quick Mount Base), item number 2207001
  • Lifetime warranty
  • Standard Equipment On
    • Lake-Troll
  • Dimensions
    • Width - 5”
    • Length - 5 1/2”
    • Mounting Holes - 2.5” x 2.5”
  • Mounting Hardware not included.
  • Compatible Accessories
    • Low Profile Swivel Base
    • Aluminum Fixed Base Pedestal
    • Aluminum Swivel Base Pedestal
    • Gimbal Mount
    • Clamp Mount (Only on Lake-Troll or Easi-Troll)
    • Rail/Side Mount
    • Deck Plate
  • Backward Compatibility:
    • Sport-Troll
    • Legacy Easi-Trolls (2010 & Prior)
    • Mini-Mag

Legacy and Obsolete Mounting Bases

Legacy Mounting Base (obsolete)

Legacy Mounting Base.png

  • This base was used on old Sport-Trolls and Mini-Mags. The down rigger slid in from the side and the knob would then be tightened into place.
  • This base is obsolete; HOWEVER, the Tab Lock Base, item number 2207001, is a replacement.
  • Mounting Holes 2.5” x 2.5”

Mounting Base (large body) (obsolete)

Mounting Base.png

  • Mounting Base (Lexan Material) item number 2207323
  • Lifetime warranty
  • Used On Electric Downriggers 2010 and Prior
    • Legacy Magnum Models
    • Legacy Digi-Troll Models
    • Mag20DT
  • Current Product Compatibility
    • None
  • Dimensions
    • Width - 3.73”
    • Length - 3.73”
    • Height - 1.75"
    • Mounting Holes - 2.5” x 2.5”
  • Mounting Hardware not included.
  • Compatible Accessories
    • Low Profile Swivel Base
    • Aluminum Fixed Base Pedestal
    • Aluminum Swivel Base Pedestal
    • Gimbal Mount
    • Clamp Mount (Only on Lake-Troll or Easi-Troll)
    • Rail/Side Mount
    • Deck Plate
  • Backward Compatibility
    • Sport-Troll
    • Legacy Easi-Trolls (2010 and Prior)
    • Mini-Mag

Mounting Base (obsolete)

Mounting Base 2207002.png

  • Mounting Base (Lexan Material), item number 2207002
    Stainless Steel Mounting Base, item number 1903004
  • Lifetime warranty
  • Used On Electric Downriggers 2010 and Prior
    • Legacy Uni-Trolls
    • Marlins
  • Current Product Compatibility
    • None
  • Dimensions
    • Width - 3.74”
    • Length - 3.74”
    • Mounting Holes - 2.5” x 2.5”
  • Compatible Accessories
    • Low Profile Swivel Base
    • Aluminum Fixed Base Pedestal
    • Aluminum Swivel Base Pedestal
    • Gimbal Mount
    • Clamp Mount (Only on Lake-Troll or Easi-Troll)
    • Rail/Side Mount
    • Deck Plate

Accessory Mount

Rail/Side Mount

rail.pngrail instructions.png

  • Rail/Side Mount (Aluminum), item number 2250940
  • 1-Year warranty
  • To be mounted to a welded T-section. It can also be used at the two-rail section butt joint. In both installations it is recommended to use a non-slip material, such as rubber or a thin wood sheet, between metal surfaces. You can also use these for mounting to a very narrow side gunwale.
  • Dimensions
    • Width - 5”
    • Length - 5”
    • Height - 4"
    • Mounting Holes Outer - 4 x 4”
    • Mounting Holes Inner - 2 ½”x 2 ½”
  • Included Mounting Hardware Kit, item number 2994896
  • Compatible Downriggers and Accessories
    • Magnum
    • Digi-Troll
    • Optimum
    • Uni-Troll
    • Easi-Troll
    • Lake Troll models swivel base
    • Low Profile Swivel Base
    • Universal Mounting Base
    • Tab Lock Base
    • Legacy Mounting Base

Clamp Mount


  • Clamp Mount (Aluminum), item number 2207327
  • 1-Year warranty
  • Dimensions
    • Width - 4”
    • Length - 4 1/2”
    • Maximum Clamp Opening - 2”
    • Mounting Holes - 2 ½” x 2 ½”
  • Included Mounting Hardware Kit, item number 2994897
  • Compatible Downriggers
    • Lake-Troll
    • Sport-Troll
    • Legacy Easi-Troll
    • Mini Mag

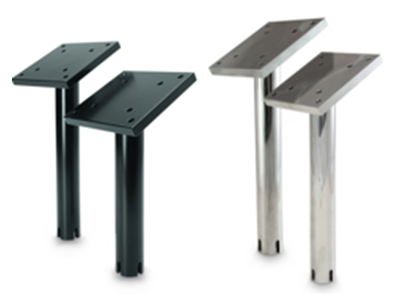

Gimbal Mounts


  • 9” Black Aluminum, item number 2250927
    12” Black Aluminum, item number 2250928
    9” 316-grade Stainless Steel, item number 1903005
    12” 316-grade Stainless Steel, item number 1903006
  • 1-Year warranty
  • Dimensions
    • Width - 5”
    • Length - 5”
    • Diameter - 1 1/2”
    • Mounting Holes Outer - 4 x 4”
    • Mounting Holes Inner - 2 ½”x 2 ½”
  • Included Mounting Hardware Kit
    • 9” and 12” Black Aluminum, item number 2994898
    • 9” and 12” 316-grade Stainless-Steel, item number 3994803
  • Compatible Downriggers and Accessories
    • Magnum
    • Digi-Troll
    • Optimum
    • Uni-Troll
    • Easi-Troll
    • Lake Troll models swivel base
    • Low Profile Swivel Base
    • Universal Mounting Base
    • Tab Lock Base
    • Legacy Mounting Base

Deck Plate (Aluminum)

Deck Plate 2200693.png

  • Deck Plate (Aluminum), item number 2200693
  • 1-Year warranty
  • Recommended to be used with boat decks thinner than ¼” and when using the telescopic boom to provide adequate stability for the downrigger.
  • Dimensions
    • Mounting Holes Outer (corner) 5 x 4”
    • Mounting Holes Inner 4”x 4”
    • Mounting Holes Inner 2 ½”x 2 ½”
  • Included Mounting Hardware Kit, item number 2994897
  • Compatible Accessories
    • Magnum
    • Digi-Troll
    • Optimum
    • Uni-Troll
    • Easi-Troll
    • Lake-Troll
    • Low Profile Swivel Base
    • Universal Mounting Base
    • Tab Lock Base
    • Legacy Mounting Bases

Line Releases

Several different types of releases are used with downriggers to release when a fish hits, to add fixed and stacking extra lures on the fishing line, to drop or add inline removable weights, and release tension from planer boards.

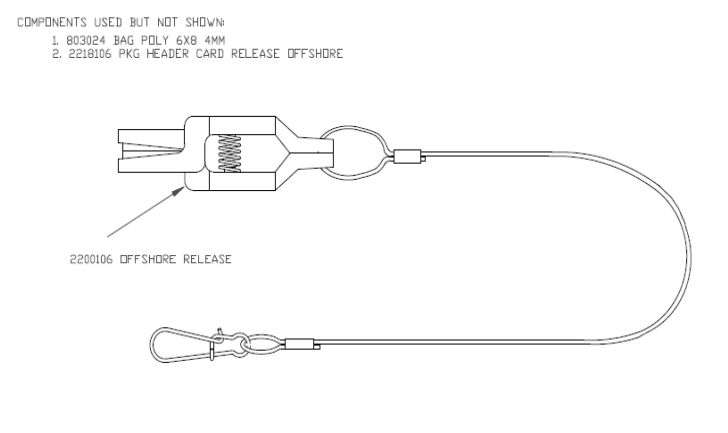

Offshore Line Release

Offshore Line Release, item number 2250106
Quick and easy to set even on turbulent waters. It won’t damage your line by twisting, winding or looping. Spring-loaded "clothespin” design allows for all types of fishing.

Offshore Stacker Release

Offshore Stacker Release, item number 2250107
Adds the ability to fish at multiple depths off a single weight with the popular Offshore Line Release.

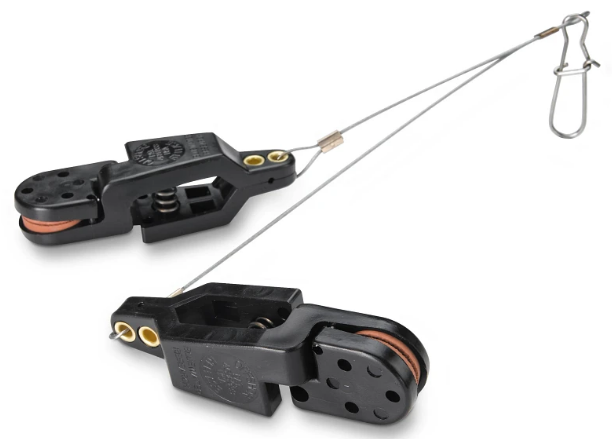

Offshore Stacker Release 2250107.png
Offshore Stacker Release diagram 2250107.png
Offshore Stacker Release packaging 2250107.png

Offshore Saltwater Line Release

Offshore Saltwater Line Release, item number 2250109
Corrosion-resistant, high-tension spring is designed for heavier saltwater lines. Troll at high speeds in deep water with its heavy-duty release. Anti-fouling pins prevent line snagging behind the gripper pads.

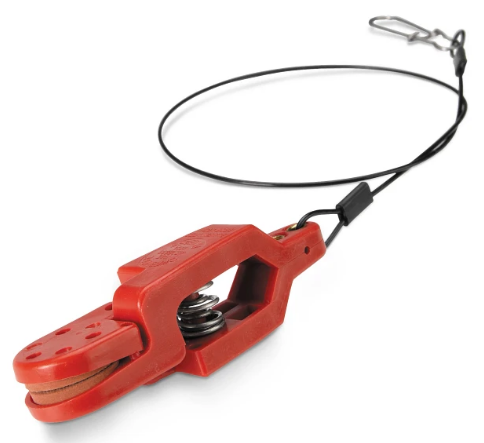

Offshore Saltwater Line Release 2250109.png

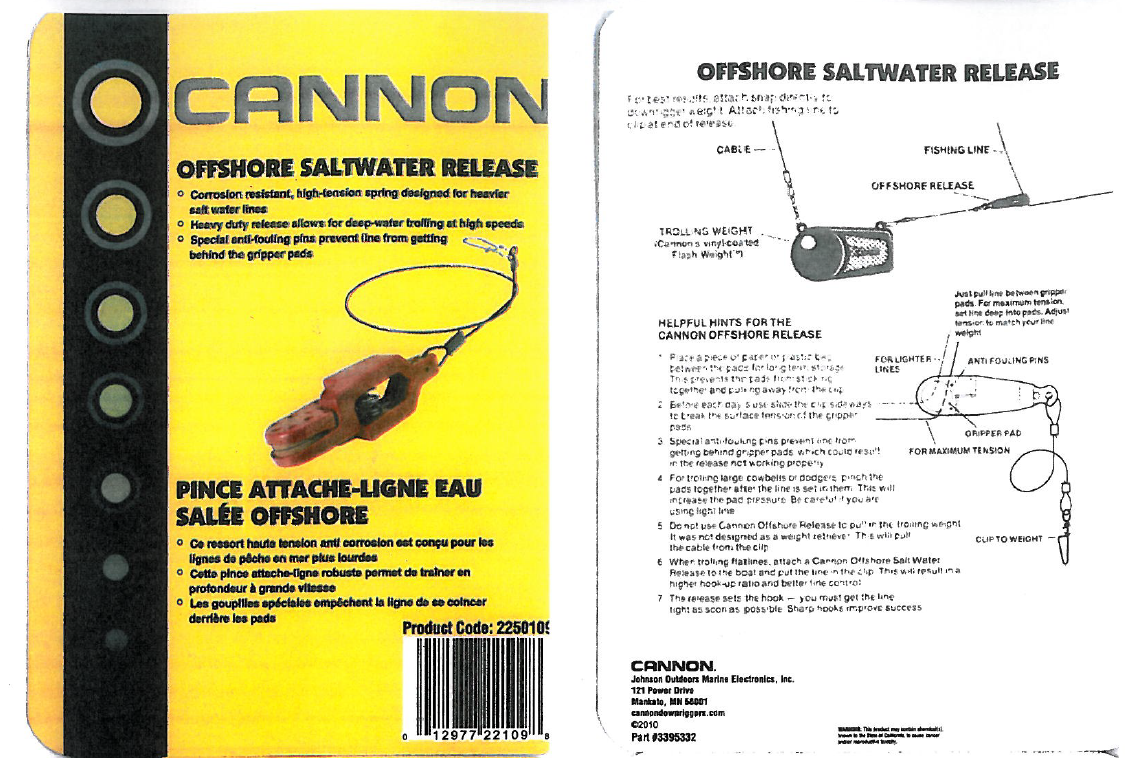

Offshore Saltwater Line Release packaging 2250109.png

Pinch-R-Release

Pinch-R-Release, item number 2250111
Spring-action clip opens quickly and easily with finger pressure. The deeper the line is set back in the pads, the greater the tension. Tension settings range from 2 to 12lbs.

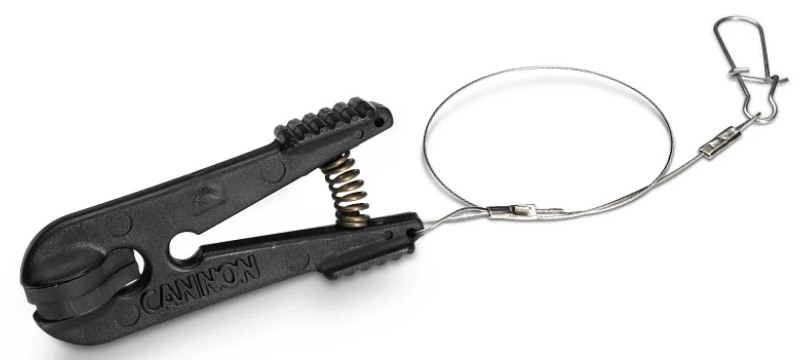

Pinch-R-Release 2250111.png

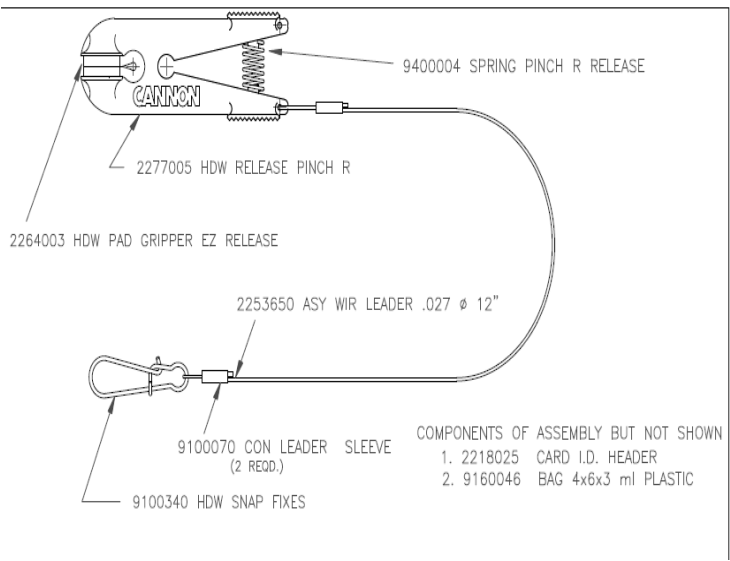

Pinch-R-Release diagram 2250111.png

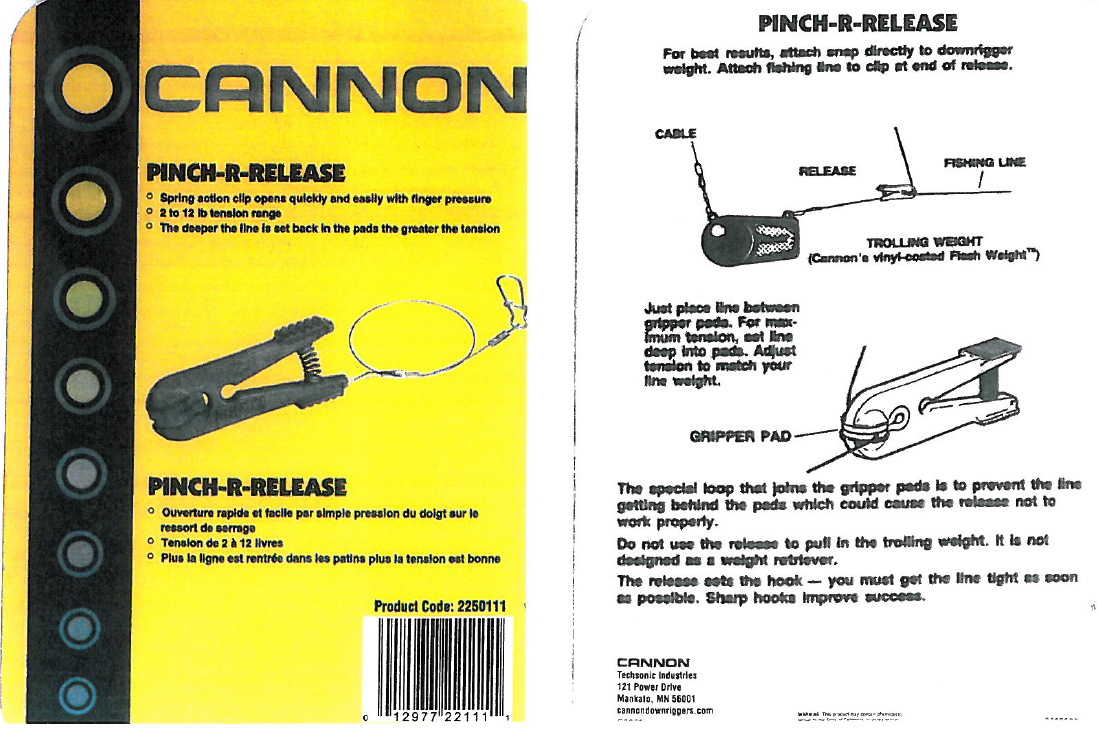

Pinch r release packaging 2250111.png

Quick Release

Quick Release, item number 2250119
Even in a bouncing boat, the Quick Release is quick and easy to use with no twisting, winding, or looping to damage your line. Adjustable tension lets you match your line weight and fishing style.

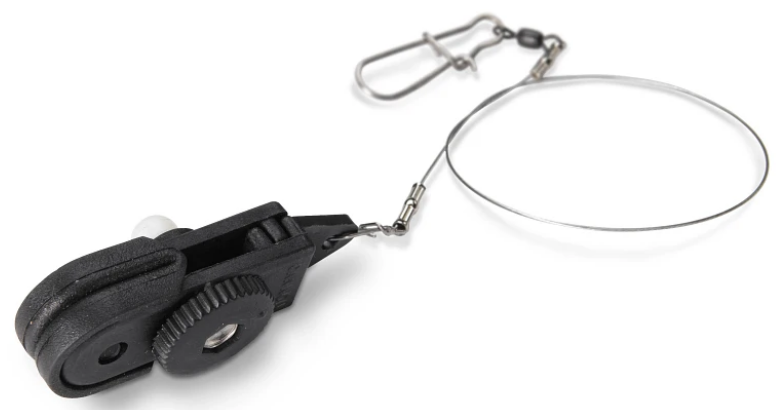

Quick Release 2250119.png
Quick Release diagram 2250119.png
Quick Release packaging 2250119.png

Quick Release Stacker

Quick Stacker Release, item number 2250120-1
Attaches directly to your downrigger cable for stacking applications. Quick and easy to use with no twisting, winding or looping to damage your line. Adjustable tension lets you match your line weight and fishing style.

Quick Stacker Release 2250120-1.pngQuick Stacker Release diagram 2250120-1.png

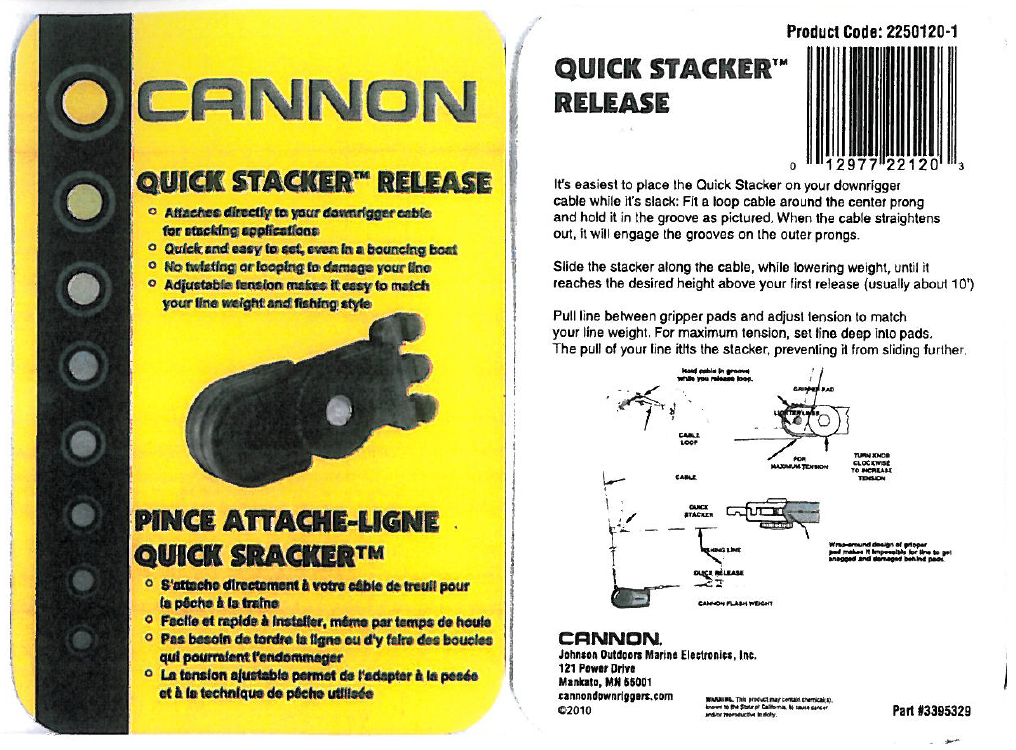

Quick Stacker Release packaging 2250120-1.png

Uni-Line Release

Uni-Line Release, item number 2250009
Two adjustment points allow tension settings from 2 to 22 lbs. Perfect for slow trolling with live baits or going after light-hitting walleyes. Easy one-hand tension release for use on any test line in saltwater or freshwater.

Uni-Line release 2250009.png
Uni-Line Release diagram 2250009.png
Uni-Line Release packaging 2250009.png

Uni-Stacker Release

Uni-Stacker Release, item number 2250105
Two adjustment points allow tension settings from 2 to 22 pounds, for slow trolling with live baits or going after light-hitting walleyes. One-hand tension release for use on any test line in saltwater or freshwater. Includes an extra stacker clip to allow fishing at multiple depths off a single weight.

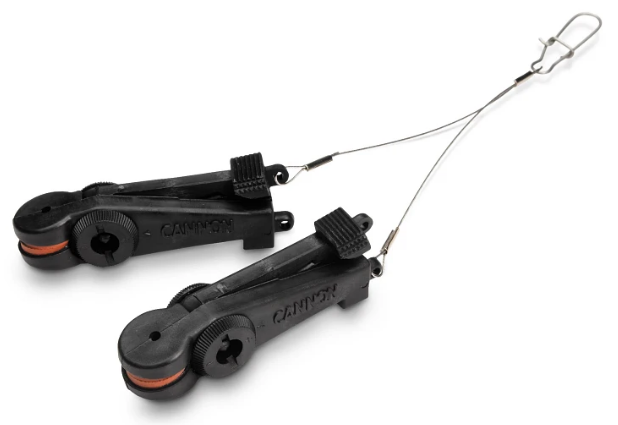

Uni-Line stacker 2250105.png
Uni-Line stacker packaging 2250105.png
