Downrigger Rigging Requirements and Installation

Updated

Jump to:

Battery Selection

All Electric Downriggers operate on 12V DC Current.

  • We recommend a Group 27 or 31, with at least 105 AH or greater.
  • Larger is OK, but smaller would be a struggle for the battery.
  • Group 27 & 31 are the most common in this type of boating application.

Note: Amp-hour ratings are not a great measurement for Lead-Acid and battery manufacturers are going away from this measurement. You are seeing more of them provide a 5-hour rate and a 20-hour rate. This means that if you discharge the battery in 5 hours the specificity the current needed to do this – same with the 20-hour rate.

  • Flooded Lead Acid Batteries:
    • Good 12-volt, Group 24
    • Better 12-volt, Group 27
    • Best 12-volt, Group 31
  • Lithium Ion Batteries:
    • We recommend 75 amp-hour rating or larger.

Conductor Gauge for Battery Lead Extensions

  • 0-15 ft. 10 gauge
  • 15-25 ft. 8 gauge
  • 25-30 ft. 6 gauge

Fuse/Breaker Specifications

  • 30 AMP, 32 Volt, waterproof, fast blow, inline breaker.

Grounding

  1. When operating multiple electric downriggers, only operate a maximum of 2 downriggers per dedicated battery.
  2. For PIC & Short Stop to work the downrigger must be grounded to the boat for these features to function.
    1. It accomplishes this by using the downrigger cable as the ground in the power supply. The ground is being picked up from the boat through the water and to the downrigger cable.
    2. If you are just wiring in 1 or 2 downriggers to your cranking battery it will be grounded properly.
    3. If the user is operating multiple downriggers utilizing batteries separate from the cranking battery there are two wiring options to make sure that all the batteries are properly grounded.

Connect Multiple Batteries in Parallel

With batteries in parallel there only needs to be one wire running to the ground. (The ground is usually the negative post of the cranking battery)rig 4.png

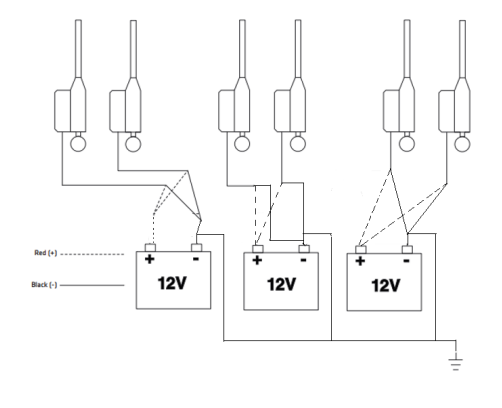

Running Individual Batteries (Separate from the cranking battery)

When running individual batteries for each downrigger set, there needs to be a ground wire running from the negative post of each battery to the ground. (The ground is usually the negative post of the cranking battery).rig 5.png

Installation

When mounting a downrigger on a boat, it should be mounted wherever it is easy to operate and observe. Due to a great variety of boats available, mounting locations can be a difficult decision. Before making permanent changes to their boat they should consider what accessories might need to be used. We will go over mounting locations, and accessories that may need to be used below. Once the mounting bases and/or accessories have been mounted to the boat you then have to install the boom, the swivel head, rod holders and if it is a manual downrigger the crank handle.



Recommended Mounting Locations
rig location.png

Installing the Base on a Boat Decks up to 7/16” thick

mount 1.png

Where access to the underside of the deck is not available, the mounting base can be mounted using wellnuts.

  1. Use the base as a template to mark locations and drill four wellnut clearance holes.
  2. Mount the base using four 1/4-20 x 1-1/2” truss head screws and four wellnuts.
  3. Tighten the screws so the wellnuts are firmly compressed.

Installing the Base on a Boat Decks thicker than 7/16”

mount 2.png

For decks thicker than 7/16”, or where the underside of the deck is accessible, mount the base with screws, nuts, and washers.

  1. Use the base as a template to mark the locations and drill four 9/32” holes.
  2. Use four 1/4-20 x 2” truss head screws and four each flat washers and nuts.
  3. Fasten the base to the deck.

NOTE: Wellnuts SHOULD NOT be used on decks thicker than 7/16”.

Installing the Base on a Boat Decks thinner than ¼”

For decks thinner that ¼” or when using the telescopic boom, we recommend the use of the Cannon Deck Plate (#2200693) to prevent deflection and add stability to the deck & downrigger.

Mounting Accessories

Low-Profile Swivel Base


  • Standard 3991913
  • Stainless Steel #1903002
  • Works on Magnum, Digi-Troll, Optimum, Uni-Troll, Easi-Troll & Lake Troll models
  • This base will fit on all of the Pedestal Mounts, Low-Profile Swivel Base, Deck Plate, Rail/Side Mount, Gimbal Mounts & Clamp Mounts.
  • Mounting Holes are 4 x 4”
  • Lifetime warranty on Standard Base.
  • 1-year warranty on Stainless Steel Base.

Installation

  1. Mark the four mounting holes & use the four ¼”-20 x 1 1/22” truss head screws to fasten the mounting base to the swivel base.
  2. Use the additional four ¼-20 x 2 ½” truss head screws to attach the swivel base to the boat deck.

Note: The Locking Pin has no warranty, it is considered a wear & tear part.

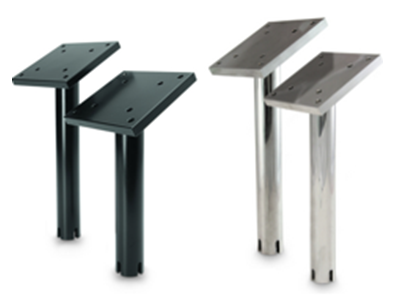

Gimbal Mounts

Designed to fit medium-sized 30° flush mounted rod holder built into the gunwale of many larger fishing boats. Only sturdy, high quality rod holders should be used for this temporary mounting system. Gimbal mounts are available in 9” or 12” post lengths & Standard (black or Stainless steel).

Gimbal Mounts:

  • 9” Standard #2250927
  • 12” Standard #2250928
  • 9” Stainless Steel #1903005
  • 12” Stainless Steel #1903006


  • Used to mount the downrigger in a 30° flush mount rod holder.
  • Works on Magnum, Digi-Troll, Optimum, Uni-Troll, Easi-Troll & Lake Troll models & with swivel base, Low Profile Swivel Base, Tab Lock Base.
  • Mounting Holes
    • Outer 4” x 4”
    • Inner 2 ½” x 2 ½”
    • Tube diameter 1 ½”
  • Mounting Hardware item number 2994898
  • 1-year warranty.

Clamp Mounts

  • Can be mounted at the junction of two rail sections with the aid of two ¼” pieces of plywood.
  • They will protect your rail from any marks from the clamp and provide a non-slip surface.
  • Clamp Mount #2207327


  • Maximum Clamp Opening – 2”
  • Works with Lake-Troll, Sport-Troll, Legacy Easi-Troll and Mini Mag.
  • Mounting Holes are 2 ½” x 2 ½”
  • 1-year warranty.

Side/Rail mounts

  • Can be mounted to a welded T-section.
  • It can also be used at the two-rail section butt joint.
  • In both installations it is recommended to use a non-slip material, such as rubber or a thin wood sheet, between metal surfaces.
  • You can also use these for mounting to a very narrow side gunwale.
  • Rail/Side Mount #2250940

rail.pngrail instructions.png

  • Works on Magnum, Digi-Troll, Optimum, Uni-Troll, Easi-Troll & Lake Troll models & with swivel base, low profile Swivel Base, Tab Lock Base.
  • Designed to secure the downrigger to the “T” joints of rails.
  • Mounting Holes are Outer: 4 x 4”;
  • Inner 2 ½”x 2 ½”
  • Mounting Hardware #2994896
  • 1-year warranty

Installing the Boom on Manual Downriggers

  1. Insert boom into frame (Figure 1) and line up holes in boom with holes in frame.
  2. Remove 1/4-20 x 2” bolt and 1/4-20 nylon locknut from included hardware bag assembly and insert the locknut into the hex pocket on the nose of the frame. Insert 1/4-20 x 2” bolt into reel side of frame nose. (Figure 2)
  3. With a Phillips head screw driver, thread bolt into nylon locknut from step 2 (Figure 2). Tighten bolt until the end of the bolt is flush with the top of the nut. (Figure 3)

rig boom.png

Installing the Ball Hook & Boom on Electric Downriggers

  1. Install the Ball Hook onto the Boom. This requires the ball hook collar, ball hook, and 1/4-20 nut from the included hardware bag assembly.
  2. Thread the nut onto the ball hook, then thread the ball hook into the ball hook collar. Do not tighten yet. (Figure 1)
  3. Slide ball hook collar onto the end of the boom and leave it loose. (Figure 2)rig ball.png
  4. Insert boom with ball hook collar assembly into frame (Figure 3) and line up holes in boom with holes in frame (Figure 4).
  5. Remove 1/4-20 x 2” bolt and 1/4-20 nylon locknut from included hardware bag assembly. Insert the 1/4-20 nylon locknut into the hex pocket on the nose of the frame (motor side of frame) then insert 1/4-20 x 2” bolt into reel side of frame nose. (Figure 5)
    NOTE: Do not overtighten ball hook or permanent deformation of the boom is possible.

rig hook.png

Adjusting the Telescopic Boom Length

To adjust the boom length (with the boom extending away from you) rotate the boom clamps approximately ¼ turn counter-clockwise to unlock (Figure 11) and slide the boom section to the desired position. (Figure 12) Once in place, lock the boom clamps by rotating clockwise until tight. (Figure 13)

adjust boom.png

Installing the Swivel Head Pulley

  1. Locate boom end assembly and then insert boom end post into end of the small tube of the boom assembly. (Figure 4)
  2.  Align hole in boom post with hole in small end tube.
  3. Secure boom end with #8 screw as shown. Tighten with Phillips head screw driver by turning screw clockwise until tight. (Figure 5)

rig pulley.png

Installing the Crank Handle Assembly to Manual Downriggers

  1. Make sure the thrust bearing is placed between both thrust washers. The spring should be oriented with the narrow end is toward the bearing.
  2. Slide the bearing, washers and spring over the shaft.
  3. Carefully thread the crank handle onto the shaft and continue turning the handle clockwise until the clutch is fully tightened.

rig handle.png

Installing the Rod Holder

  1. Attach the rod holder elbow to the downrigger on the left side using the supplied spring and knob.
  2. Fasten rod holder to rod holder elbow using supplied spring and knob. The rod holder can be adjusted by loosening either knob until the locking teeth are free from each other. Rotate the rod holder or arm to the desired position and re-tighten knob.
  • CAUTION: This rod holder is intended for use of up to 30 lb. test line only and is not recommended for use with any tackle IGFA (International Game Fish Association) rated higher than 30 lb. A safety strap (not included) is recommended for all applications.
  • NOTE: The rod holder assembly is not covered under warranty when used with tackle above 30 lbs. Equipment placed in the rod holders and the loss thereof is the responsibility of the user and is in no way warranted by Johnson Outdoors, Inc. Mounting must be in accordance with the above instructions to comply with the product warranty.

Magnum rod.png

Rigging Diagrams

rig 1.png
rig 2.png
rig 3.png
