This article walks through the locations of serial numbers on Cannon Products.
Your Cannon 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number down in your product’s user manual or somewhere outside of your boat so you have it available for future reference.
Jump to:
- Serial Number Formats
- Optimum Serial Number Location
- Magnum Serial Number Location
- Digi-Troll Serial Number Location
- Uni-Troll and Easi-Troll Serial Number Location
- Lake-Troll Serial Number Location
- Mini-Troll Serial Number Location
- Resources
Serial Number Formats
- For products manufactured before 2022, the Cannon serial number formats were U365 CN12345 or M074 CN02314.
- For products manufactured in 2022 or later, the Cannon serial number format is 22001C12345.
2022 & After Serial Numbers

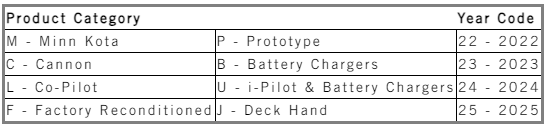

These serial numbers will be a 5 digit date, 1 letter for the product category, followed by 5 numbers. The 5 digit date code will be YYDDD.
Example: 22001C12345 with manufacture date of January 1st, 2022
- 22 = Year Code
- 001 = Day of Year (1-365)
- C = Product Category
- 12345 = Individual Series #
Optimum Serial Number Location
The serial number on your Cannon Optimum downrigger is located on the bottom of the downrigger frame. It can also be found on the About Screen within the Cannon downrigger operating system.
Magnum Serial Number Location
The serial number on your Cannon Magnum downrigger is located on the bottom of the downrigger frame. It can also be found on the About Screen within the Cannon downrigger operating system.
Digi-Troll Serial Number Location
The serial number on your Cannon Digi-Troll downrigger is located on the bottom of the downrigger frame.

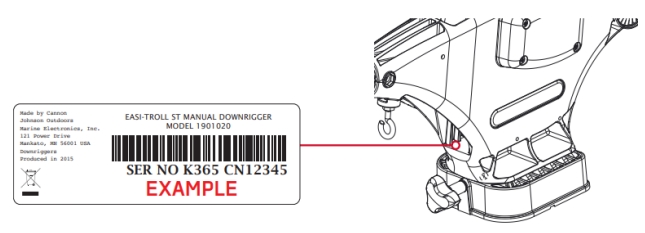

Uni-Troll and Easi-Troll Serial Number Location
The serial number on your Cannon Easi-Troll or Uni-Troll downrigger is located towards the inside of the bottom of the frame.
Lake-Troll Serial Number Location
The serial number on your Cannon Easi-Troll or Uni-Troll downrigger is located towards the inside of the bottom of the frame.
Mini-Troll Serial Number Location
The serial number of your Cannon Mini-Troll Downrigger is located on the bottom side of the frame.
