This article walks through an overview of the Magnum Downriggers and the features they include.
Jump to:
- Magnum Downrigger Models
- Video - Cannon Magnum 10 Electric Downrigger
- Magnum Anatomy
- Magnum Models
- Features
- Specifications

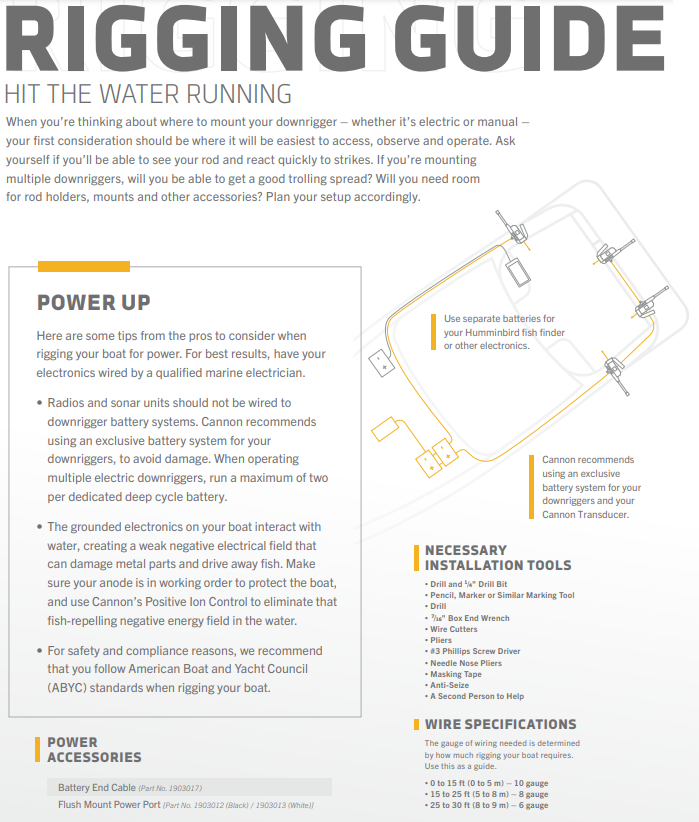

- Rigging Guide
- Manuals
Magnum Downrigger Models
Magnum Models
Video - Cannon Magnum 10 Electric Downrigger
The Magnum downrigger by Cannon is highly durable and reliable, designed to withstand harsh conditions on the water. It features a one-piece composite construction with sealed electronics and motor. Key features include dual access rod holders, a 360-degree swivel base, a removable side plate for easy spool access, and an extendable boom. The 3-digit depth counter ensures precise bait positioning, and the auto UP button allows for quick retrieval of the downrigger cable at 250 feet per minute, helping to avoid line tangles when a fish is on. For more details, visit Cannon’s website or their YouTube channel.
Chapters

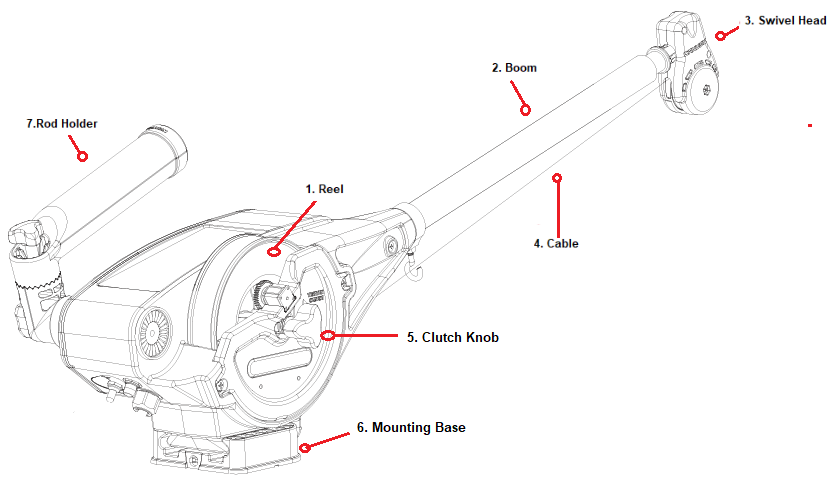

Magnum Anatomy
- Reel-This is used to spool the cable, available in lengths ranging from 150 to 400 feet. Optimum TS models will have a stainless-steel reel & Optimum models will have a composite reel, which can be upgraded to the stainless-steel reel.
- Boom-This is used to extend the weight out from the body of the downrigger and has a pulley fixed to its end. Boom lengths range from 24 to 53 inches. ( Telescopic Boom on Magnum 10 STX and Magnum STX TS only)
- Swivel Head-This relays the cable at the end of the boom to lower the weight.
- Cable-This connects to the weight. Optimum models are pre-spooled with 400’ of 150 lb Test Stainless Steel Cable
- Clutch Knob- This loosens and tightens the tension on the spool and holds the side plate in place.
- Mounting Bases-These attach to the boat, enabling you to place the downrigger where you choose.
- Rod Holder-This holds your fishing rods while trolling and may also be used for storing rods.
- Weight-(not pictured) Not included w/ downrigger. This is used to maintain the depth at which you want to fish. Optimum models have a 20-lb weight capacity
Features
- Positive Ion Control Attracts fish by releasing positive ions that combat the negative ions from your boat.
- Auto Up (Short Stop) Automatically retrieve the weight at the flip of the switch. Once Snap & Insulator breaks the waterline, it will turn into a negative current and stop the weight from swinging into the boat or the end of the boom.
- Retrieval Speed 250’ per minute (this is not adjustable coming up)
- Rod Holders Includes 1 Dual Axis Adjustable Rod Holder
- Mounting Base- Comes with Standard Mounting base on all Magnum Models. 360° Swivel Base on Magnum 10 STX and Magnum STX TS only.
Positive Ion Control Video
Specifications
- Operation (Type): Electric
- Boom Length: 24 in - 53 in Telescopic (Magnum 10 STX and Magnum STX TS only)
- Boom Material: Stainless Steel
- Spool Material: Composite
- Line On Spool: 250 ft / 150 lb Stainless Steel Cable
- Retrieval Speed 250' Per Minute
- Mounting Base Low-Profile Swivel Base (Magnum 10 STX and Magnum STX TS only)
- Rod Holders 1 - Dual Axis Adjustable
- Weight Capactity 20 lb
- Depth Counter Analog
- Control Method Switch
- Positive Ion Control Yes
- One-Boat Network Ready No
-
Wireless Connectivity No
-
Mobile App No
-
Full-Color LCD Screen No
- Short Stop Yes
-
Soft Stop No
-
Depth Cycling No
-
Preset Depth Storage No
-
Bottom Tracking Compatible No
-
Adjustable Speeds No
-
Waterline Zero No
-
Auto Up Yes
-
Removable Side Plate Yes
-
Trolling Weight Storage Hook Yes
-
Enclosed Boom End Yes
- Warranty Limited Lifetime
