Rod Holders and Track Systems

Jump to:

• Aluminum Mounting Tracks
• Aluminum Fixed Base Downrigger Pedestal
• Aluminum Swivel Base Downrigger Pedestal
• Aluminum Dual Axis Rod Holder
• Aluminum Single Axis Rod Holder
• Aluminum Deck Mount Plate
• Aluminum Rail Mount
• Three-Position Rod Holder

click to enlarge image

Aluminum Mounting Tracks

• The most versatile track system for complete customization for your trolling spread. This track uses locking grooves to prevent accessories from twisting and allows components to be easily removed or replaced. Available in multiple lengths to customize for a single product or utilizing a longer track for multiple products.

• 1-year warranty
• Available Sizes

  • 6” Track- item number 1904025
    • This mounting track is designed to support 1 Cannon-compatible accessories. For optimal setup and compatibility, please refer to the list of approved mounts and rod holders provided below, along with detailed dimensions.
  • 12” Track- item number 1904026
    • • This mounting track is designed to support up to 2 Cannon-compatible accessories. For optimal setup and compatibility, please refer to the list of approved mounts and rod holders provided below, along with detailed dimensions.
  • 18” Track- item number 1904027
    • This mounting track is designed to support up to 3 Cannon-compatible accessories. For optimal setup and compatibility, please refer to the list of approved mounts and rod holders provided below, along with detailed dimensions.
  • 24” Track -item number 1904028
    • This mounting track is designed to support up to 4 Cannon-compatible accessories. For optimal setup and compatibility, please refer to the list of approved mounts and rod holders provided below, along with detailed dimensions.
  • 36” Track- item number 1904029
    • This mounting track is designed to support up to 6 Cannon-compatible accessories. For optimal setup and compatibility, please refer to the list of approved mounts and rod holders provided below, along with detailed dimensions.
• Dimensions
  • Exterior Track Width - 3.95”
  • Interior Track Width - 3"
• End Cap Kit part number 3886562
  (includes 2 End Caps & 2 Screws)

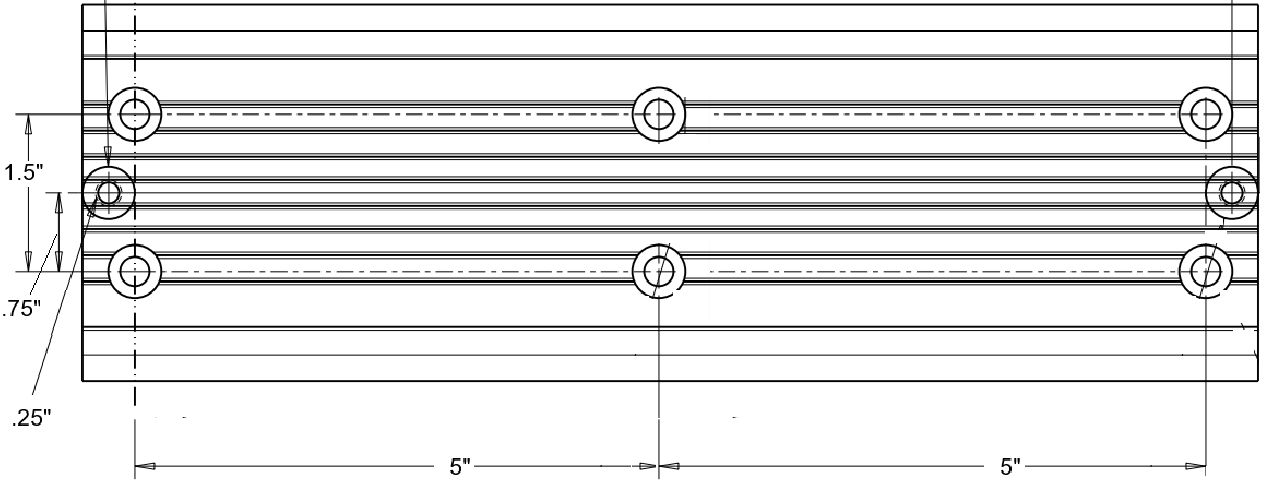

• Hole Pattern

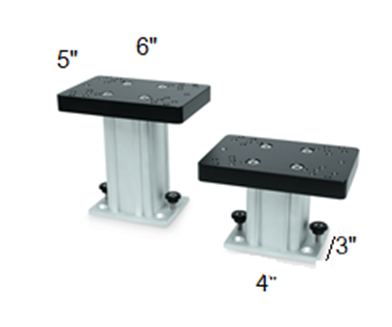

  Aluminum Fixed Base Downrigger Pedestal



  • 1-year warranty
  • Available Sizes

    • 4” height - item number 1904030
    • 6” height - item number 1904031
  • Dimensions
    • Base Dimension – 4” x 3”
    • Base Thickness ¼”
  • Included Mounting Screws #2373480; requires QTY: 4
  • Thumb Screw Kit part number 3883413 (includes 2)
  • Compatible with Cannon Mounting Track

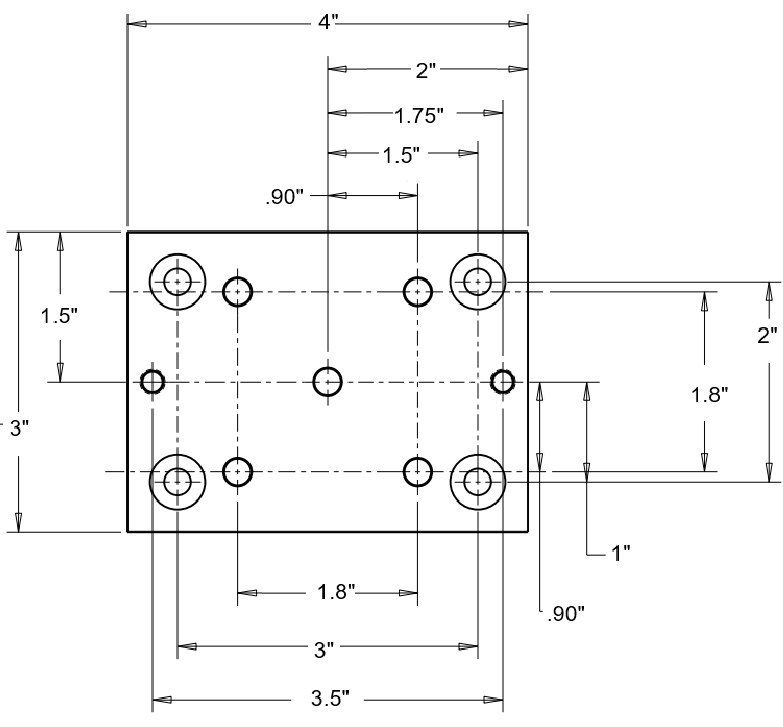

    • Base Hole Pattern
  •

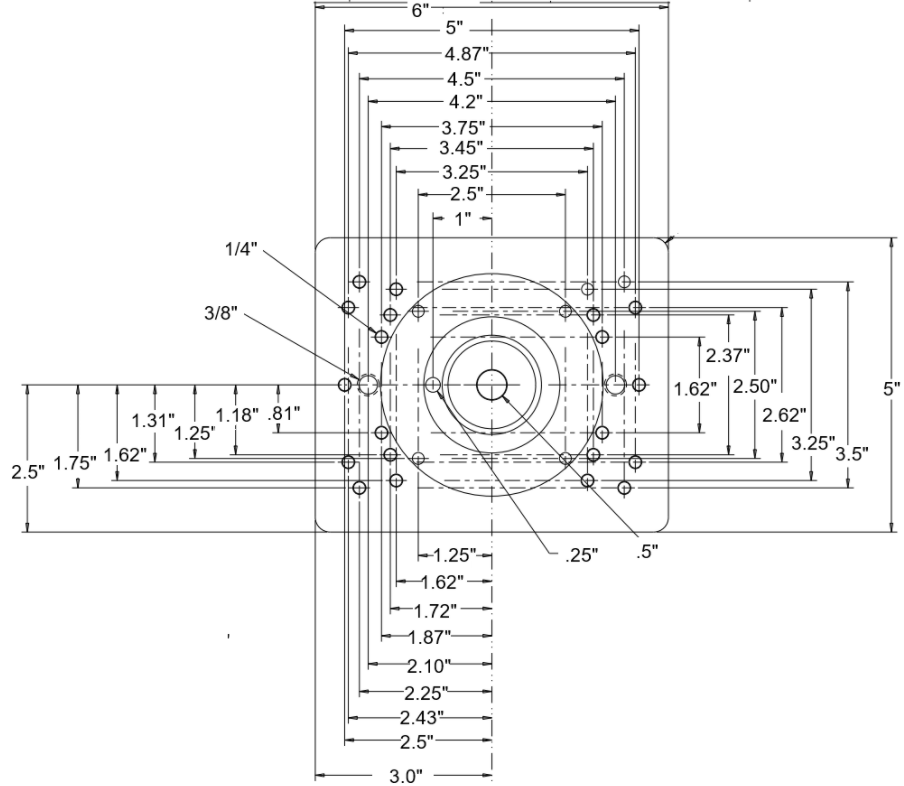

  • Top Hole Pattern

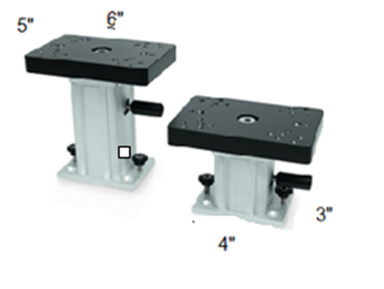

  Aluminum Swivel Base Downrigger Pedestal



  • 1-year warranty
  • 1-year warranty
  • Available Sizes
    • 4” height - item number 1904032
    • 6” height - item number 1904033
  • Dimensions
    • Base Dimension – 4” x 3”
    • Base Thickness ¼”
    • Included Mounting Screws #2373480; requires QTY: 4
    • Thumb Screw Kit part number 3883413 (includes 2)
    • Compatible with Cannon Mounting Track
    • Base Hole Pattern
  •
  • Top Hole Pattern

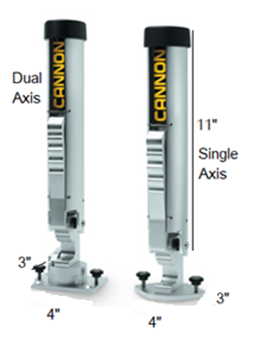

  Aluminum Dual Axis Rod Holder



  • 1-year warranty
  • item number 1907002
  • Dimensions
    • Base Dimension – 4” x 3”
    • Base Thickness – ¼”
  • Thumb Screw Kit, part number 3883413 (includes 2)
  • Rod Holder Cap Kit, part number 3881515
  • Cannon Emblem, part number 3394710
  • Compatible with Cannon Mounting Track

  Aluminum Single Axis Rod Holder



  • 1-year warranty
  • item number 1907001
  • Dimensions
  • Base Dimension – 4” x 3”
  • Base Thickness – ¼”
  • Thumb Screw Kit, part number 3883413 (includes 2)
  • Rod Holder Cap Kit, part number 3881515
  • Cannon Emblem, part number 3394710
  • Compatible with Cannon Mounting Track

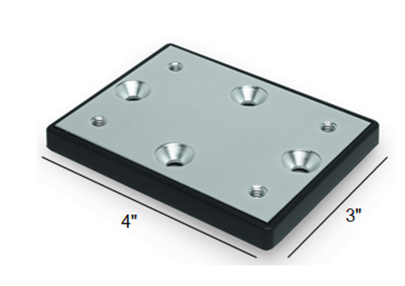

  Aluminum Deck Mount Plate



• 1-year warranty
• item number 1904000
• Dimensions
• Base Dimension – 4” x 3”
• Base Thickness – 3/8”
• Mounting Hardware included

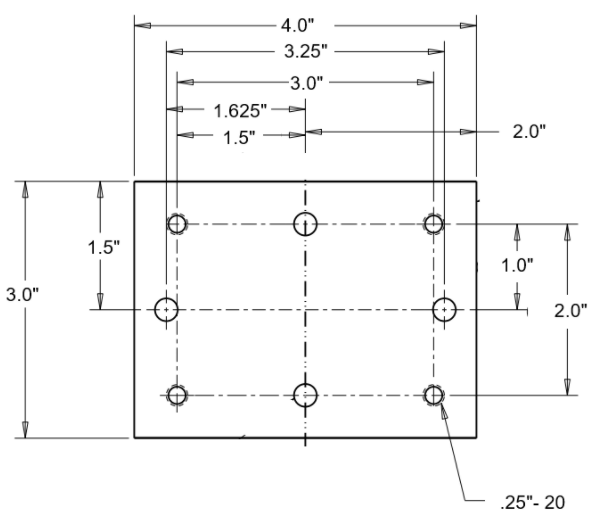

• Hole Pattern:


Aluminum Rail Mount

• 1-year warranty
• item number 1904015
• Works with Single Axis Rod Holder
• Works on Round or square rails, from ¾”-1 11/4”
• Mounting Hardware not included

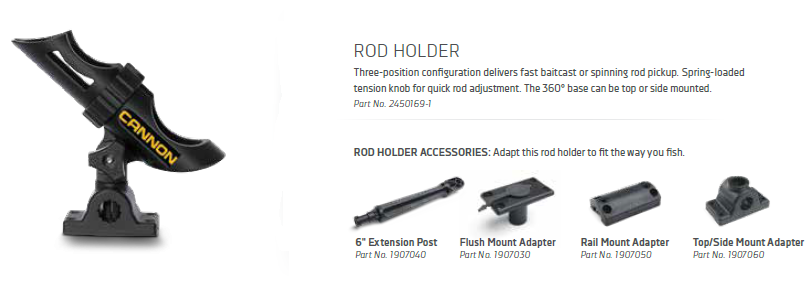

Three-Position Rod Holder

• • • •
      • 1-year warranty
      • item number 2450169
      • Three Position Rod Holder Accessories
      • 6” Extension Post (Pair), part number 1907040
      • Flush Mount Adapter, part number 1907030
      • Rail Mount Adapter, part number 1907050
      • Top/Side Mount Adapter, part number 1907060
      • Mounting Hardware not included
      • The decal is the only available replacement part for the Three-Position Rod holder, part number 3395631
      • Not Compatible with Cannon Mounting Track
